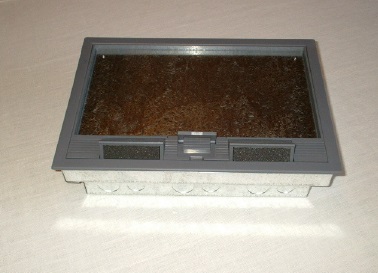

The LTL’s 100 FB 3 compartment floor boxes are flexible enough to accommodate most situations of power, data and phone needs, however LTL will investigate any special requirements. Both dividers can be removed if needed, for other applications.




General Features:
• Overall dimensions 310 x 216 mm
• Option of 3 Depths: 65, 75, and 85 mm
• Panel cut out 300 x 200mm approx.
• Reversible lid/trim assembly
• Manufactured from flame retardant ABS
• 2 cable exit flaps providing 60 x 15mm openings
• Integral moulded lifting handle
• 4 unique relocatable spring fixing clips for quick fit

Lid Tray Assembly
The carpet trim and lid tray are moulded from flame retardant ABS, with both having a steel reinforced section to ensure maximum rigidity. Each lid is provided with two cable outlet brackets that are securely fixed into the lid tray, together with a moulded integral lid handle.
The carpet trim and lid tray can be rotated through 180° to allow the lid to be opened in either direction. The standard colour of the moulding is dark grey.

Mounting Frame
The mounting frame is manufactured from galvanised steel and is suitable for mounting into a 300 x 200mm approx hole cut into any access floor panel. The frame is provided with four spring clips which firmly anchor the frame into the floor panel .

Box Base
The box base is manufactured from galvanised steel and is provided with 20 and 25mm knockouts on all four sides. Dividing fillets are provided to separate the internal services. To ensure maximum security for the electrical services, the accessory plate fixing screws are located in an inaccessible position.

The LTL 100 FB accommodates any combination of three Outlet panels shown below

Luminair Technologies

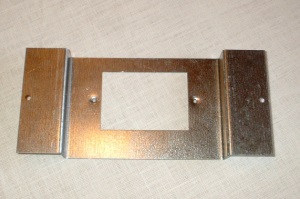

LTL 695 FB
Floor Box Outlet panel for PDL 695 socket
or other equivalents.



Luminair Technologies

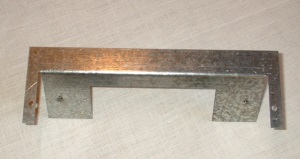

LTL 699 FB
Floor Box Outlet panel for PDL 699 socket
or other equivalents.



Luminair Technologies LTL 619 FB
Floor Box Outlet panel for 6 x Keystone adaptor clips.
